Burkert Flow meter + connector Germany 449694+551761 manufacturer from Germany Ralph Messring Company with Limited Liability

Product Detail

Model No.: 449694+551761

Production Capacity: 60pcs/day

Delivery Date: 4-6weeks

Protection class measurement device (IP): 65

Operating supply type: 3 conductor

Means of Transport: Ocean,Land,Air

Packing: carton

Brand Name: Burkert

DC voltage: 18-36V

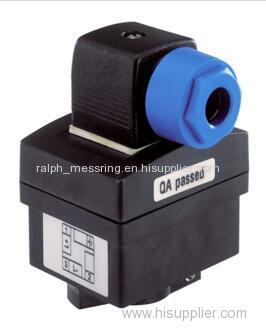

Flow meter with NAMUR or NPN/PNP output signal
Mounting, dismounting of electronics by a Quarter-Turn

Name	Value	Unit

Type	SE30
Flow rate (volume)	Yes
Continuous measurement	Yes
Dosing	No
Switch	No
Construction device	Bajonet
Display type	no display
Protection class measurement device (IP)	65
DC voltage min.	12	V
DC voltage max.	36	V
Battery voltage	No
Precision of volume flow rate in relation to reading	1	%
Temperature environment min	-15	°C
Temperature environment max	80	°C
Temperature medium min	-15	°C
Temperature medium max	125	°C
Sensor type	Paddle wheel
Paddle wheel type	High-temperature
Paddle wheel measuring principle detection	Coil
Fitting electronic interface	Inline
Cable plug in delivery	enclosed
Cable plug art. no. - type	00156927 - 2508
Electrical connection 1 type	Plug pattern form A according to DIN EN 175301-803
Electrical connection 1 quantity	1	PCE
Electrical connection 1 number of contacts	4	PCE
Output 1 digital type	Transistor
Output 1 digital transistor connection NPN	Yes
Output 1 digital transistor connection PNP	No
Digital output 1 transistor contactless	0.7	A
Output 2 digital type	Transistor
Output 2 digital transistor connection NPN	No
Output 2 digital transistor connection PNP	Yes
Digital output 2 transistor contactless	0.7	A
Electronics body material	PPS (Polyphenylene sulphide)
Cover material	PPS (Polyphenylene sulphide)
Electronics body encapsulated	Resin
